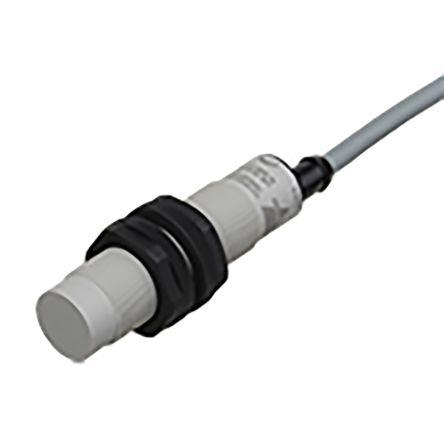

CAP PROX PL M18 NON-FLUSH IO-LINK, PLUG

Technical Specifications

Attribute	Value
Supply Voltage	10-40
Output Type	NPN/PNP
Maximum Operating Temperature	+85
Sensor Technology	Capacitive
Shielding	Shielded
Minimum Operating Temperature	-30
IP Rating	IP69K, IP67, IP68
Reverse Polarity Protection
Mounting Type	Non-Flush
Thread Size	M18
Housing Material	Plastic
Body Style	Threaded Barrel, Cylindrical
Manufacturer	Carlo Gavazzi
Series	CA18CAN
Depth
Supply Voltage AC
Hazardous Area Certification	No
Standards/Approvals	No
Brand	Carlo Gavazzi
Supply Voltage DC Max	40 V
Communication Interface	IO-Link
Sensing Distance	12 mm
Switching Frequency	50
Switching Current	20
Short Circuit Overload Protection
Length	85
Switching Frequency Max	50
Dimensions
Width
Electrical Connection	Plug
