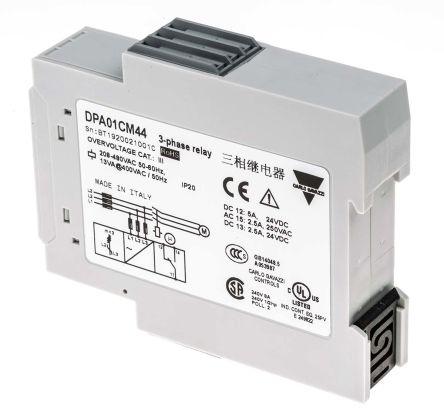

Carlo Gavazzi Carlo Gavazzi Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 177 → 550V ac, DIN Rail, DPA01CM44

RS Stock No: 8577680

Mfr Part No: DPA01CM44

Brand: Carlo Gavazzi

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 177 → 550V ac, DIN Rail, DPA01CM44
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Mounting TypeDIN Rail
Terminal TypeScrew
BrandCarlo Gavazzi
Frequency Sensing Range (Min)45 Hz
Current Sensitivity
Minimum Current Sensed
Insulation Sensing Range
Speed Sensitivity
Time Delay (Min)0.1 s
ManufacturerCarlo Gavazzi
Supply voltage (Un)-Min (AC)208 V
Monitoring Application TypePhase, Voltage
Frequency Sensing Range (Max)65 Hz
Supply voltage (Un)-Max (AC)480 V
Electrical Phase3
Phase SensitivityPhase Sequence, Phase Loss
Product TypeMonitoring Relay
Monitoring Range [AC] [V]177 to 550 V
Height [mm]80 mm
Contact ConfigurationSPDT
Standards/ApprovalsCSA, IEC 60664, IEC 60038, UL EN 61000-6-2, EN 61000-6-3, RoHS
Maximum Current Sensed
Temperature Sensitivity-20 to 60
