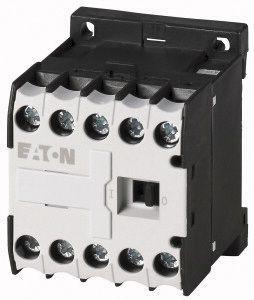

Eaton Eaton Contactor, 230 V ac Coil, 4 Pole, 9 A, 4 kW, 4NO

RS Stock No: 1788017

Mfr Part No: 052506 DILEM4(230V50/60HZ)

Brand: Eaton

Eaton Contactor, 230 V ac Coil, 4 Pole, 9 A, 4 kW, 4NO
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+50 °C
Terminal TypeScrew
FunctionMotor Control, Resistive Load
Operational Current9 A
Mounting StyleDIN-Rail
Standards/ApprovalsCSA, IEC, UL, EN
Width45 mm
Length58 mm
BrandEaton
Auxiliary Contact Configuration
Coil Voltage [VAC]230
ManufacturerEaton
Number of Auxiliary Contacts0
Contact Voltage Rating [VAC]600
Contactor ApplicationMotor Control
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]0.03
Power Rating [KVAR]
Utilisation categoryAC-3, AC-4, AC-1, AC-3e
Control Circuit Voltage Uc230 V
Pole and Throw Configuration4P
Contact Current Rating [AC]22
Depth83 mm
Power Rating [kW]4
Contact Voltage Rating [VDC]
Number of Poles4
SeriesDILEM
Contact Current Rating [DC]20
Normal State Configuration4 NO
