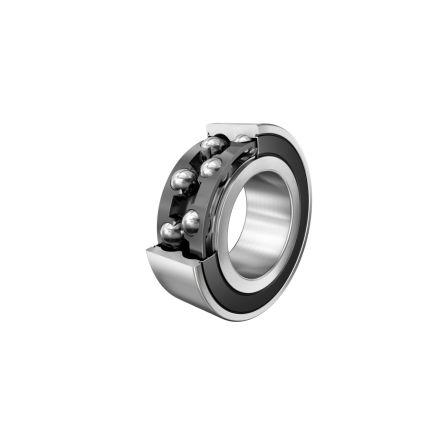

FAG FAG 3804-B-2RSR-TVH-HLC Double Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 32mm O.D

RS Stock No: 2600811

Mfr Part No: 3804-B-2RSR-TVH-HLC

Brand: FAG

Compare

In stock - 9

£35.63(exc. VAT)

£42.76(inc. VAT)

Questions related to this product?

Our experts are ready to help!

Technical Specifications

Attribute	Value
Product Type	Angular Contact Ball Bearings
Outside Diameter (mm)	32 mm
Race Type	Plain
Internal Clearance	CN
Race Material	Steel
Contact Angle	25
Dynamic Load Rating (N)	5600 N
Sealing Arrangement	Both Sides Sealed
Inside Diameter (mm)	20 mm
Number of Rows	2
Bore Type	Parallel
Bearing Type	Angular Contact
Race Width (mm)	10 mm
Static Load Rating (N)	4750 N
Cage Material	Polyamid 66
Ball Material	Steel
Limiting Speed (rpm)	10600 rpm
Standards/Approvals	No
Series	3804
