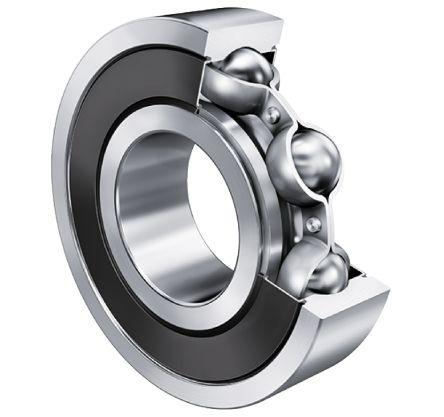

FAG FAG 6305-C-2HRS Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 62mm O.D

RS Stock No: 2776637

Mfr Part No: 6305-C-2HRS#N1>V

Brand: FAG

FAG 6305-C-2HRS Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 62mm O.D
In stock - 21
£9.66(exc. VAT)
£11.59(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Sealing ArrangementBoth Sides Sealed
Internal ClearanceP6
Product TypeDeep Groove Ball Bearing
Race MaterialSteel
Race Width (mm)17 mm
Limiting Speed (rpm)11300 rpm
Inside Diameter (mm)25 mm
Bearing TypeDeep Groove
Cage MaterialSteel Sheet Metal
Ball MaterialSteel
Bore TypeCylindrical
Race TypeSteel
Static Load Rating (N)11500 N
Outside Diameter (mm)62 mm
Standards/ApprovalsNo
Dynamic Load Rating (N)22500 N
Series6305
Number of Rows1
