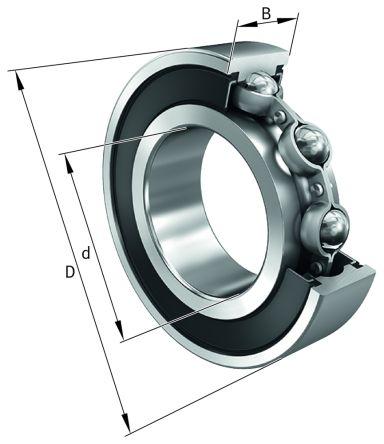

FAG FAG S6001-2RSR-FD Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 28mm O.D

RS Stock No: 2792304

Mfr Part No: S6001-2RSR-FD

Brand: FAG

FAG S6001-2RSR-FD Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 28mm O.D
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Sealing ArrangementBoth Sides Sealed
Internal ClearanceCN
Product TypeDeep Groove Ball Bearing
Race MaterialStainless Steel
Race Width (mm)8 mm
Limiting Speed (rpm)9700 rpm
Inside Diameter (mm)12 mm
Bearing TypeDeep Groove
Cage MaterialSteel
Ball MaterialStainless Steel
Bore TypeCylindrical
Race TypeSteel
Static Load Rating (N)1910 N
Outside Diameter (mm)28 mm
Standards/ApprovalsDIN 625-1
Dynamic Load Rating (N)4350 N
SeriesS6001
Number of Rows1
