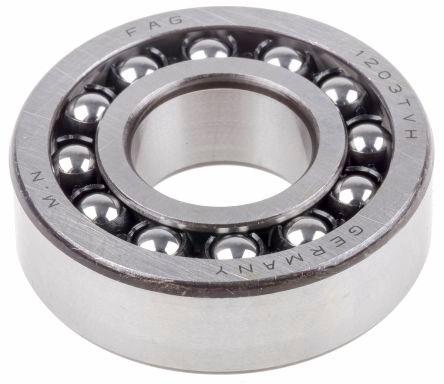

Self Aligning ID 17mm, OD 40mm, W 12mm

Technical Specifications

Attribute	Value
Manufacturer Part Number	1203-TVH
Product Type	Ball Bearing
Bearing Type	Self Aligning
Ball Material	Steel
Cage Material	Fibreglass Reinforced Polyamide
Race Material
Race Type	Plain
Number of Rows	2
Bore Type	Cylindrical
Inside Diameter [mm]	17 mm
Outside Diameter [mm]	40 mm
Race Width [mm]	12 mm
Internal Clearance	CN
Static Load Rating [KN]	2.01 KN
Dynamic Load Rating [KN]	8.1 KN
Static Load Rating-Radial [KN]	2.01 KN
End Type
Limiting Speed [rpm]	21800 rpm
Series
Standards/Approvals	No
Temperature Rating (Min) [°C]	-30 °C
Temperature Rating (Max) [°C]	120 °C
