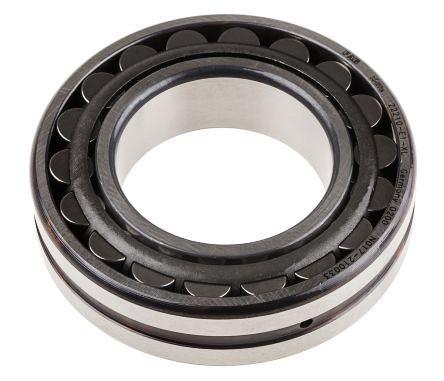

FAG Spherical roller bearing 50mm id 90mm od

RS Stock No: 1908342

Mfr Part No: 22210-E1-XL-C3

Brand: FAG

Spherical roller bearing 50mm id 90mm od
Unavailable
£85.10(exc. VAT)
£102.12(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Manufacturer Part Number22210-E1-XL-C3
Product TypeRoller Bearing
Bearing TypeSpherical
Ball Material
Cage MaterialSteel
Race Material
Race Type
Bore TypeParallel
Inside Diameter [mm]50 mm
Outside Diameter [mm]90 mm
Race Width [mm]23 mm
Internal ClearanceC3
Static Load Rating [KN]107 KN
Dynamic Load Rating [KN]109 KN
Static Load Rating-Radial [KN]107 KN
End TypeOpen
Limiting Speed [rpm]9800 rpm
Series
Standards/ApprovalsNo
Temperature Rating (Min) [°C]-30 °C
Temperature Rating (Max) [°C]200 °C
