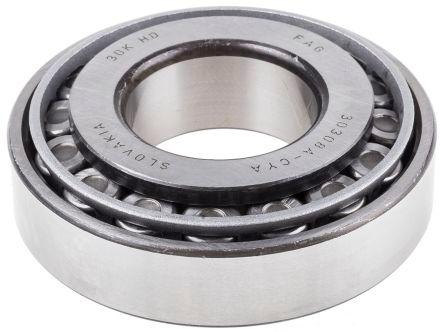

FAG Taper Roller ID 40mm, OD 90mm, W 25.25mm

RS Stock No: 1740984

Mfr Part No: 30308-A

Brand: FAG

Taper Roller ID 40mm, OD 90mm, W 25.25mm
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Manufacturer Part Number30308-A
Product TypeRoller Bearing
Bearing TypeTaper
Cage MaterialSteel
Race Material
Number of Rows1
Bore TypeParallel
Inside Diameter [mm]40 mm
Outside Diameter [mm]90 mm
Race Width [mm]25.25 mm
Cone Width [mm]25.25 mm
Static Load Rating [KN]102 KN
Dynamic Load Rating [KN]91 KN
Static Load Rating-Radial [KN]102 KN
Bearing Dynamic Load Rating91 KN
End TypeOpen
Limiting Speed [rpm]8500 rpm
Standards/ApprovalsNo
Temperature Rating (Min) [°C]-30 °C
Temperature Rating (Max) [°C]120 °C
