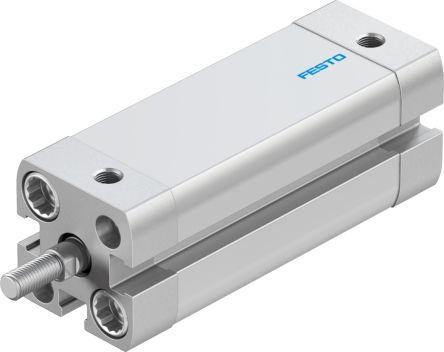

Festo ADN Compact Cyl 12mm Bore 40mm Stroke

RS Stock No: 1366762

Mfr Part No: ADN-12-40-A-P-A

Brand: Festo

ADN Compact Cyl 12mm Bore 40mm Stroke
Out of stock
£49.14(exc. VAT)
£58.97(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-20°C
Maximum Operating Temperature+80°C
Port ConnectionM5
Length79.2 mm
Rod Type
Test Weight
Model Number (p)536210
ManufacturerFesto
Dimensions
Height27.5 mm
Force at 7 bar51 (Retracting) N @ 6 bar, 68 (Advancing) N @ 6 bar
Cylinder TypeCompact
Position DetectionProximity Switch
Piston Rod Thread GenderMale
Cushioning TypeElastic Cushioning Rings/Plates At Both Ends
SeriesADN
BrandFesto
Diameter
Stroke Length40 mm
Pneumatic ConnectionM5
Action TypeDouble
Weight
VDMA Standard
Stroke Interval Weight
Width27.5 mm
Bore Size12 mm
ISO Standard
Maximum Operating Pressure10 bar
