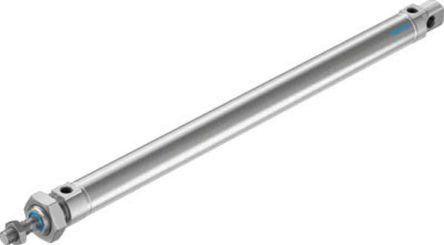

Festo DSNU-25-500-PPV-A ISO cylinder

RS Stock No: 2021727

Mfr Part No: DSNU-25-500-PPV-A

Brand: Festo

DSNU-25-500-PPV-A ISO cylinder
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-20°C
Maximum Operating Temperature+80°C
Port Connection
Length619.5 mm
Rod Type
Test Weight238 g
Model Number (p)35194
ManufacturerFesto
Dimensions
Height
Force at 7 bar
Cylinder TypeCylinder Barrel
Position DetectionProximity Switch
Piston Rod Thread GenderMale
Cushioning TypePneumatic Cushioning, Adjustable At Both Ends
SeriesDSNU
BrandFesto
Diameter27 mm
Stroke Length500 mm
Pneumatic ConnectionG 1/8
Action TypeDouble
Weight
VDMA StandardVDMA 24364-B1/B2-L
Stroke Interval Weight
Width
Bore Size25 mm
ISO StandardISO 6432
Maximum Operating Pressure10 bar
