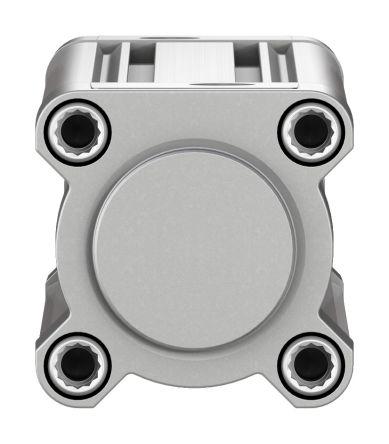

Festo ISO Cylinder 63mm Bore, 200mm Stroke

RS Stock No: 1215192

Mfr Part No: DSBC-63-200-PPSA-N3

Brand: Festo

ISO Cylinder 63mm Bore, 200mm Stroke
Out of stock
£200.37(exc. VAT)
£240.44(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Minimum Operating Temperature-20°C
Maximum Operating Temperature+80°C
Port ConnectionG 3/8
Length393.1 mm
Rod TypeSingle
Test Weight1740 g @ 0 mm Stroke
Model Number (p)1383639
ManufacturerFesto
Dimensions
Height75 mm
Force at 7 bar1870 (Advancing) N @ 6 bar, 1682 (Retracting) N @ 6 bar
Cylinder TypeProfile Barrel
Position DetectionProximity Switch
Piston Rod Thread GenderMale
Cushioning TypeSelf Adjusting Pneumatic End Position Cushioning
SeriesDSBC
BrandFesto
Diameter
Stroke Length200 mm
Pneumatic ConnectionG 3/8
Action TypeDouble
Weight1700 g
VDMA Standard24562
Stroke Interval Weight62 g @ 10 mm Stroke
Width75 mm
Bore Size63 mm
ISO Standard15552
Maximum Operating Pressure12 bar
