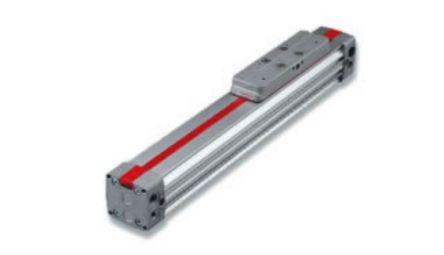

Norgren Double Acting Rodless Actuator 1000mm Stroke, 32mm Bore

Technical Specifications

Attribute	Value
Minimum Operating Temperature	-30
Maximum Operating Temperature	80
Weight	2.50 Weight at 0 mm \|\| 0.35 Weight per 100 mm
Connection Thread Standard	BSPP
Stroke Length	1000
Series	Lintra
Port Thread Size	G 1/4
Product Type	Rodless Actuator
Length	1240
Cushioning Type	Pneumatic Adjustable
Action Type	Double
Standards/Approvals	ATEX
Maximum Operating Pressure	8
Guide Type	Internal Guide
Width	92
Body Material	Aluminium
Bore Size	32
Mounting Orientation	Universal
Port Gender	Female
Height	90
