Built-in Signal Generator | No |
Power Source | USB |
Oscilloscope Type | Digital Storage |
Input Impedance | 1 MΩ |
Sample Rate | 5 GS/s |
Display Type | Capacitive Touch Gesture-Enabled Display |
Calibrated service type | |
Record Length | 8 Mpts |
Dimensions | 381 x 204 x 142 mm |
Number of Automatic measurements | 44 |
Brand | Keysight Technologies |
Trigger Type | Pulse Width, Pattern/state, Rise/fall time, Edge, Setup and hold |
Number of Channels | 4 |
Memory Depth | 8 Mpts |
Battery Type | |
Wi-Fi | No |
Waveform Refresh Rate | 00, 1, 000 wfm/s |
Safety Category | ANSI/UL |
Maximum Time Base | 50 (s/div) |
Digital/Analogue | Digital |
Rise Time | 5.8 ns |
Minimum Time Base | 0.5 (ns/div) |
Manufacturer | Keysight Technologies |
Number of Analogue Channels | 4 |
Screen Size | 8.5 in |
Weight | 0.5 kg |
Bandwidth | 1000 MHz |

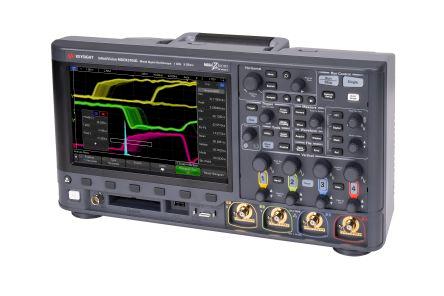

Manufacturer Part Number | DSOX3104G |
Waveform Math and Analysis | Add, Divide, Differentiate, Integrate, FFT, Multiply, Subtract |
Touch Screen | Yes |
USB Powered | Yes |
Input Capacitance | 8 pF |
Vertical Resolution | 16 bit |
Oscilloscope Form | Bench |
Number of Digital Channels | 16 |
Built-in Wave Generator | Yes |
Communication Interface | LIN, CAN, IIC, USB, RS422, UART, RS232, RS485, SPI |
