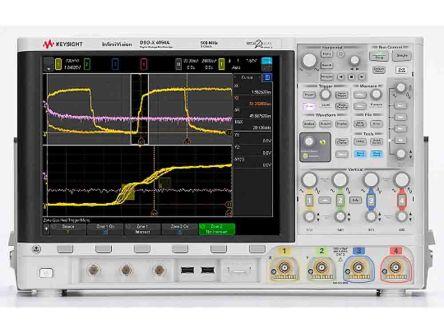

Keysight Technologies DSOX4054A Bench Oscilloscope, 500MHz, 4 Analogue Channels

Keysight Technologies Keysight Technologies DSOX4054A Bench Oscilloscope, 500MHz, 4 Analogue Channels DSOX4054A

0 in stock
£17,009.00(exc. VAT)
£20,410.80(inc. VAT)

Mfr part no: DSOX4054A

RS Stock No.: 1953170

Brand: Keysight Technologies

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

Built-in Signal GeneratorNo
Power SourceMains
Oscilloscope TypeDigital Storage
Input Impedance1 MΩ
Sample Rate5 GS/s
Display TypeTFT LCD
Calibrated service typeNo
Record Length2 Mpts
Maximum Vertical Sensitivity1 (mV/div)
Dimensions454 x 156 x 275 mm
Number of Automatic measurements36
BrandKeysight Technologies
Trigger TypePulse Width, Rise/Fall Time, Pattern/State, Setup And Hold, Edge
Number of Channels4
Memory Depth2 Mpts
Battery Type
Waveform Refresh Rate00, 1, 000 wfm/s
Safety CategoryCAT II 300V
Maximum Time Base0.05 (s/div)
Rise Time0.7 ns
Minimum Time Base1 (ns/div)
ManufacturerKeysight Technologies
Number of Analogue Channels4
Screen Size12.1 in
Weight6.3 kg
Bandwidth500 MHz
Minimum Vertical Sensitivity1 (mV/div)
Manufacturer Part NumberDSOX4054A
Waveform Math and AnalysisAdd, Divide, Differentiate, Integrate, FFT, Multiply, Subtract
Touch ScreenYes
USB PoweredNo
Input Capacitance16 pF
Vertical Resolution8 bit
Oscilloscope FormBench
Number of Digital Channels16
Built-in Wave GeneratorYes
Communication InterfaceVGA, GPIB, USB, LAN
