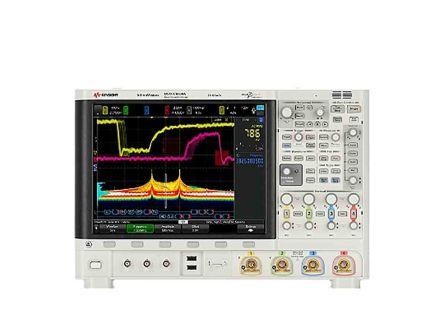

Keysight Technologies DSOX6004A Bench Oscilloscope, 1 - 6GHz, 4 Analogue Channels With RS Calibration

Keysight Technologies Keysight Technologies DSOX6004A Bench Oscilloscope, 1 - 6GHz, 4 Analogue Channels With RS Calibration DSOX6004A

100 in stock
£22,245.00(exc. VAT)
£26,694.00(inc. VAT)

Mfr part no: DSOX6004A

RS Stock No.: 1953504

Brand: Keysight Technologies

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

AttributeValue
Built-in Signal GeneratorNo
Power SourceMains
Oscilloscope TypeDigital Storage
Input Impedance1 MΩ
Sample Rate20 GS/s
Display TypeTFT LCD
Calibrated service typeRSCAL
Record Length4 Mpts
Maximum Vertical Sensitivity5000 (mV/div)
Dimensions425 x 148 x 288 mm
Number of Automatic measurements56
BrandKeysight Technologies
Trigger TypePulse Width, Pattern/state, Rise/fall time, Edge, Setup and hold
Number of Channels4
Memory Depth4 Mpts
Battery Type
Wi-FiNo
Waveform Refresh Rate00, 1, 000 wfm/s
Safety CategoryCAT II 300V
Maximum Time Base0.05 (s/div)
Digital/AnalogueDigital
Rise Time0.075 ns
Minimum Time Base0.1 (ns/div)
ManufacturerKeysight Technologies
Number of Analogue Channels4
Screen Size12.1 in
Weight6.8 kg
Bandwidth6000 MHz
Minimum Vertical Sensitivity1 (mV/div)
Manufacturer Part NumberDSOX6004A
Waveform Math and AnalysisAdd, Divide, Differentiate, Integrate, FFT, Multiply, Subtract
Touch ScreenYes
USB PoweredNo
Input Capacitance14 pF
Vertical Resolution8 bit
Oscilloscope FormBench
Number of Digital Channels16
Built-in Wave GeneratorYes
Communication InterfaceGPIB, USB, LAN
