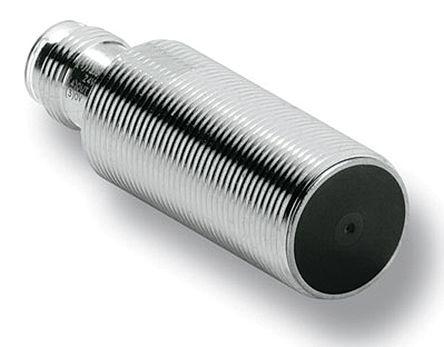

Omron Inductive, 4mm;SS; M8 M8 CN PNP NC E2B-S08LN04-MC-B2

10 in stock

£35.20(exc. VAT)

£42.24(inc. VAT)

Mfr part no: E2B-S08LN04-MC-B2

RS Stock No.: 8055033

Brand: Omron

Technical Reference

Attribute	Value
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M8
Terminal Type	3-Pin M8 Connector
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Body Style	Barrel
Standards Met	EN60947-5-2, IEC 60529
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	4 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M8 x 49 mm
Length	49 mm
Series	E2B
