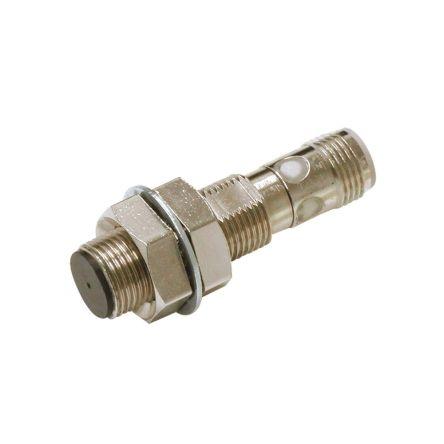

Inductive Sensor M12 3-wire NPN NO

Technical Specifications

Attribute	Value
Supply Voltage	10 to 30
Output Type	NPN
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Shielded
IP Rating	IP67G, IP69K, IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M12 x 1
Housing Material	Brass
Body Style	Cylindrical
Manufacturer	Omron
Series	E2E-NEXT
Depth
Standards/Approvals
Brand	Omron
Communication Interface	IO-LINK
Sensing Distance	9 mm
Switching Frequency
Switching Current	16
Short Circuit Overload Protection	Yes
Length	47.1
Dimensions
Electrical Connection	4-Pin, M12
