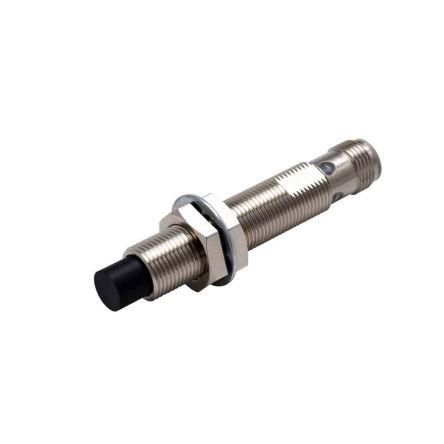

Omron Inductive Sensor M12 3-wire PNP NO E2E-X16MB1TL12-M1

26 in stock

£48.23(exc. VAT)

£57.88(inc. VAT)

Mfr part no: E2E-X16MB1TL12-M1

RS Stock No.: 1889127

Brand: Omron

Technical Reference

Attribute	Value
Standards Met	UL Listed, CE Marked, CSA Certified
Sensor Technology	Inductive
IP Rating	IP67G - dust tight; water immersion protected & cutting oil resistant, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M12
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Brass
Body Style	Barrel
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	16 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	16 mA
Electrical Connection	Connector
Dimensions	M12 x 69.1 mm
Length	69.1 mm
Series	E2E-NEXT
