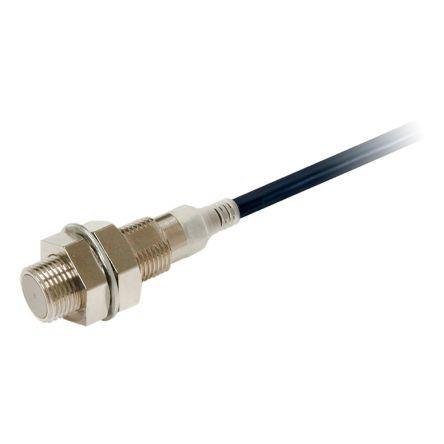

Omron Inductive Sensor M12 3-wire PNP NO+NC E2E-X4B3D12 2M

3 in stock

£35.93(exc. VAT)

£43.12(inc. VAT)

Mfr part no: E2E-X4B3D12 2M

RS Stock No.: 1889088

Brand: Omron

Technical Reference

Attribute	Value
Standards Met	UL Listed, CE Marked, CSA Certified
Thread Size	M12
Terminal Type	2 m Cable
Mounting Type	Flush
Housing Material	Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67G - dust tight; water immersion protected & cutting oil resistant, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	PNP
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	4 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	16 mA
Electrical Connection	Cable
Dimensions	M12 x 47.1 mm
Length	47.1 mm
Series	E2E-NEXT
