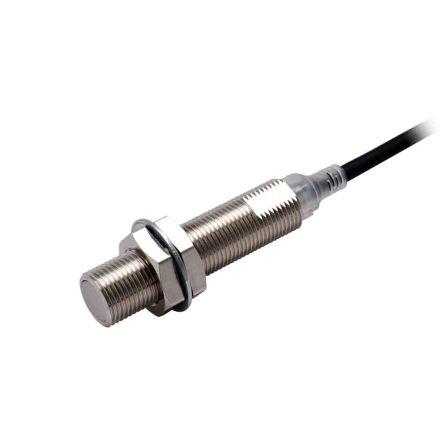

Omron Inductive Sensor M12 3-wire PNP NO+NC

RS Stock No: 1889130

Mfr Part No: E2E-X4B3DL12-M1

Brand: Omron

Inductive Sensor M12 3-wire PNP NO+NC
Unavailable
£41.56(exc. VAT)
£49.87(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Mounting TypeFlush
Thread SizeM12 x 1
Terminal Type3-Pin M8 Connector
Housing MaterialBrass
Body StyleCylindrical
Supply Voltage10 V to 30 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyInductive
ShieldingShielded
Minimum Operating Temperature-25
IP RatingIP67G, IP69K, IP67
Reverse Polarity ProtectionYes
ManufacturerOmron
Shape
SeriesE2E-NEXT
Hazardous Area Certification
Standards/Approvals
BrandOmron
Supply Voltage DC Max30 V
Application
Communication InterfaceIO-LINK
Sensing Distance4 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current16 mA
Short Circuit Overload ProtectionYes
Length69.1
Switching Frequency Max
Dimensions
Width12
Electrical Connection3-Pin M8 Connector
