Please note: Some technical details are unavailable for this product

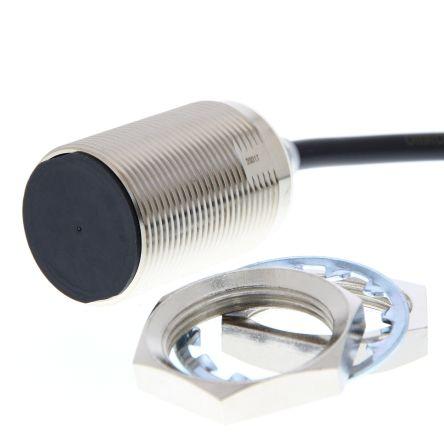

Omron Inductive Sensor M30 3-wire PNP NO

RS Stock No: 1889099

Mfr Part No: E2E-X22B1T30 2M

Brand: Omron

Inductive Sensor M30 3-wire PNP NO
Unavailable
£56.30(exc. VAT)
£67.56(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Supply Voltage10 V to 30 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyInductive
ShieldingShielded
Minimum Operating Temperature-25
IP RatingIP67G, IP69K, IP67
Reverse Polarity ProtectionYes
Mounting TypeFlush
Thread SizeM30 x 1.5
Terminal Type3-Pin M8 Connector
Housing MaterialBrass
Body StyleCylindrical
ManufacturerOmron
Shape
SeriesE2E-NEXT
Hazardous Area Certification
Standards/Approvals
BrandOmron
Supply Voltage DC Max30 V
Application
Communication InterfaceIO-LINK
Sensing Distance22 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current16 mA
Short Circuit Overload ProtectionYes
Length60.3
Switching Frequency Max0.2 kHz
Dimensions
Width30
Electrical Connection3-Pin M8 Connector
