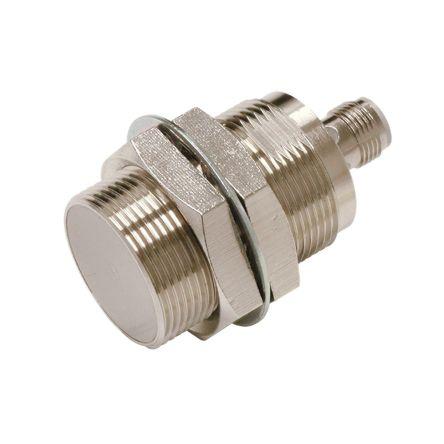

Omron Inductive Sensor M30 3-wire PNP NO+NC E2E-X15B3D30-M1

6 in stock

£43.10(exc. VAT)

£51.72(inc. VAT)

Mfr part no: E2E-X15B3D30-M1

RS Stock No.: 1889160

Brand: Omron

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M30 x 1.5
Terminal Type	4-Pin M12 Connector
Housing Material	Brass
Body Style	Cylindrical
Supply Voltage	10 V to 30 V
Output Type	PNP
Maximum Operating Temperature	70 °C
Sensor Technology	Inductive
Shielding	Shielded
Minimum Operating Temperature	-25 °C
IP Rating	IP67G, IP69K, IP67
Reverse Polarity Protection	Yes
Manufacturer	Omron
Shape
Series	E2E-NEXT
Hazardous Area Certification
Standards/Approvals
Brand	Omron
Supply Voltage DC Max	30 V
Application
Communication Interface	IO-LINK
Sensing Distance	15 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	16 mA
Short Circuit Overload Protection	Yes
Length	60.3 mm
Switching Frequency Max
Dimensions
Width	30 mm
Electrical Connection	4-Pin M12 Connector
