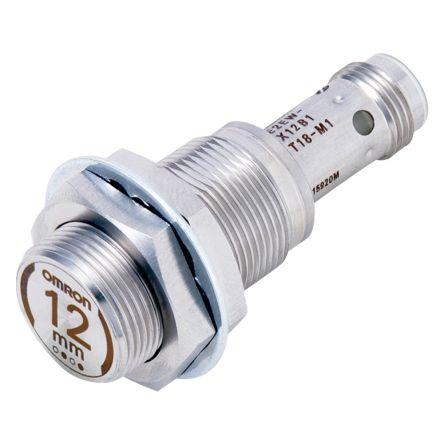

Omron Inductive Sensor SS M18 12mm PNP NO+NC E2EW-X12B3T18-M1

0 in stock

£108.10(exc. VAT)

£129.72(inc. VAT)

Mfr part no: E2EW-X12B3T18-M1

RS Stock No.: 2368729

Brand: Omron

Technical Reference

Attribute	Value
Standards Met	UL Listed, CE Marked, CSA Certified
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	85 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M18
Terminal Type	M12 Connector
Mounting Type	Quasi-Flush
Housing Material	Stainless Steel
Body Style	Barrel
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	12 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	M18 x 54.4 mm
Length	54.4 mm
Series	E2EW
