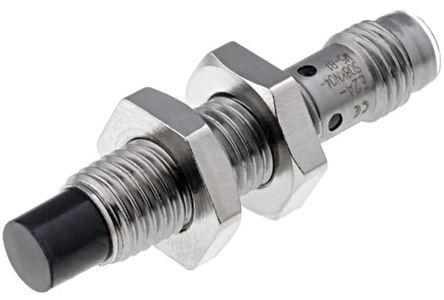

Omron Inductive,M8, SS, 4MM, PNP, NO, M12 E2A-S08LN04-M1-B1

17 in stock

£52.65(exc. VAT)

£63.18(inc. VAT)

Mfr part no: E2A-S08LN04-M1-B1

RS Stock No.: 8049621

Brand: Omron

Technical Reference

Attribute	Value
Thread Size	M8
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Body Style	Barrel
Standards Met	EN 60947-5-2, IEC 60529, DIN 40050
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	4 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M8 x 49 mm
Length	49 mm
Series
