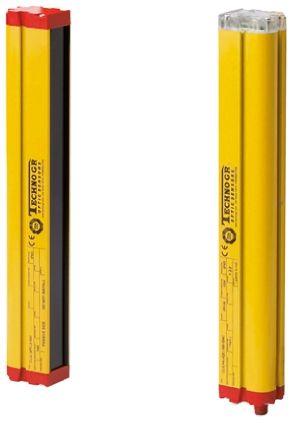

Light curtain,Advanced,14mm,Type 2,600mm

Technical Specifications

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	2 PNP
Manufacturer	Omron
Number of Beams	2
Features	Preset Function, Auto Reset, Interlock With Manual Reset, Blanking, Muting
Series	F3S-TGR-CL
Product Range
Response Time Max	103 ms
Brand	Omron
Protective Area Height	600 mm
Sensing Distance Max	6000 mm
Beam Resolution	14 mm
Height	48 mm
Protection Type	Finger, Hand
PL (EN ISO 13849-1)	PL c
Length	658 mm
Maximum Protective Width
Sensing Distance Min	200 mm
Component Type	Sender, Receiver
Dimensions	658 x 37 x 48 mm
Width	37 mm
Safety Type	2
SIL (IEC 61508)	SIL 1
