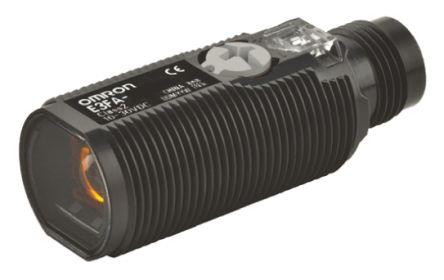

Omron M18 sensor LDR 10-50mm NPN M12 E3FAVN21

82 in stock

£86.00(exc. VAT)

£103.20(inc. VAT)

Mfr part no: E3FAVN21

RS Stock No.: 7685973

Brand: Omron

Technical Reference

Attribute	Value
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	NPN
Standards Met	CE Marked
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Screw Mount
Housing Material	Plastic
Body Style	Barrel
Material Detected	Plastic - Transparent, Glass - Transparent, Metal
Brand	Omron
Detection Type	Diffuse
Switching Mode
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	50 mm
Minimum Detection Range	10 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	34.5 x 18 mm
Length	34.5 mm
Series	E3F
