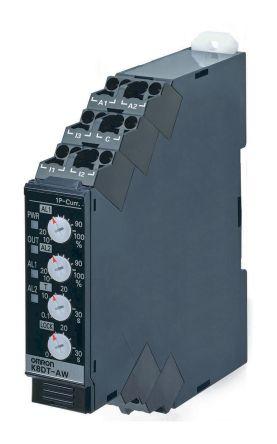

MONITORING RELAY 17.5MM

Technical Specifications

Attribute	Value
Mounting Type	DIN Rail
Terminal Type
Brand	Omron
Frequency Sensing Range (Min)	50 Hz
Current Sensitivity	Undercurrent, Overcurrent
Minimum Current Sensed	0.5 A
Insulation Sensing Range
Speed Sensitivity
Time Delay (Min)	0.25 s
Manufacturer	Omron
Supply voltage (Un)-Min (AC)	100 V
Monitoring Application Type	Current Monitoring
Frequency Sensing Range (Max)	60 Hz
Supply voltage (Un)-Max (AC)	240 V
Electrical Phase	1
Phase Sensitivity
Product Type
Monitoring Range [AC] [V]
Contact Configuration	SPST
Standards/Approvals
Maximum Current Sensed	1 A
Temperature Sensitivity	Overtemperature
