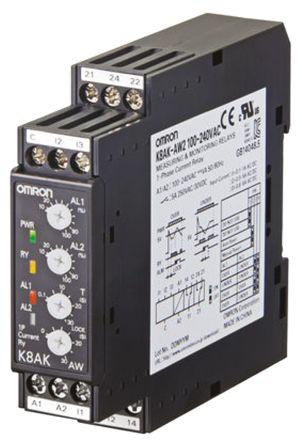

Omron MONITORING RELAY 22.5MM 2 TO 500MA SPDT

RS Stock No: 8193223

Mfr Part No: K8AK-AW1 100-240VAC

Brand: Omron

MONITORING RELAY 22.5MM 2 TO 500MA SPDT
In stock - 1
£110.10(exc. VAT)
£132.12(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Mounting TypeDIN Rail
Terminal Type
BrandOmron
Frequency Sensing Range (Min)45 Hz
Current SensitivityUndercurrent, Overcurrent
Minimum Current Sensed0.002 A
Insulation Sensing Range
Speed Sensitivity
Time Delay (Min)0.1 s
ManufacturerOmron
Supply voltage (Un)-Min (AC)100 V
Monitoring Application TypeCurrent Monitoring
Frequency Sensing Range (Max)65 Hz
Supply voltage (Un)-Max (AC)240 V
Electrical Phase1
Phase SensitivityOvervoltage
Product Type
Monitoring Range [AC] [V]
Contact ConfigurationSPDT
Standards/Approvals
Maximum Current Sensed0.5 A
Temperature SensitivityOvertemperature
