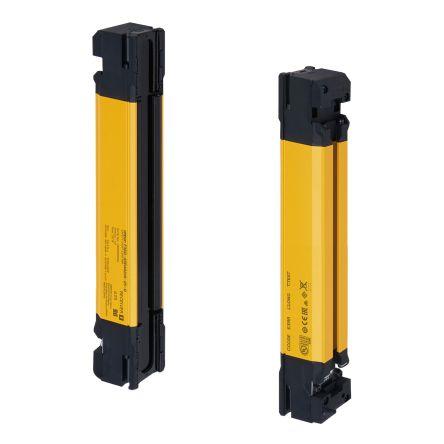

Omron F3SG Series F3SG-SRB Standard Light Curtain, Sender & Receiver, 15 - 207 Beam(s), 14mm Resolution

Omron Omron F3SG Series F3SG-SRB Standard Light Curtain, Sender & Receiver, 15 - 207 Beam(s), 14mm Resolution F3SG-2SRB0480-14

0 in stock
£634.00(exc. VAT)
£760.80(inc. VAT)

Mfr part no: F3SG-2SRB0480-14

RS Stock No.: 2147594

Brand: Omron

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

AttributeValue
Terminal Type
Supply Voltage19.2 - 28.8 V
Output TypePNP/NPN
ManufacturerOmron
Number of Beams207
Features
SeriesF3SG
Product RangeF3SG-SRB Standard
Response Time Max13 ms
BrandOmron
Protective Area Height480 mm
Sensing Distance Max1000 mm
Beam Resolution14 mm
Protection Type
Range
PL (EN ISO 13849-1)PL c
Maximum Protective Width
Component TypeSender, Receiver
Dimensions
Scanning Range
Safety Type2
SIL (IEC 61508)SIL 1
