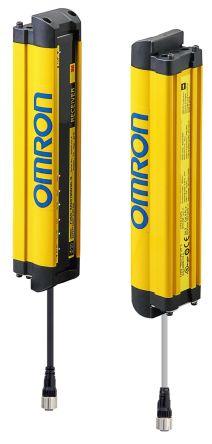

Omron Omron F3SG-RE Series Light Curtain, Sender & Receiver, 36 Beam(s), 30mm Resolution F3SG-2RE0750P30

6 in stock

£748.50(exc. VAT)

£898.20(inc. VAT)

Mfr part no: F3SG-2RE0750P30

RS Stock No.: 1250686

Brand: Omron

Technical Specifications

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP
Manufacturer	Omron
Number of Beams	36
Features	Downsized, No Torque Control Required, Ensuring Safe Restart, Easy Adjustment after Mounting, Slim Housing, Protected with Protection Cover, Robust & Compact Design, Smart Muting Actuator, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Used in Global & Harsh Environment, Reliable Even in Harsh Environment
Series	F3SG-RE
Product Range
Response Time Max	135 ms
Brand	Omron
Protective Area Height	750 mm
Sensing Distance Max	20000 mm
Beam Resolution	30 mm
Height	750 mm
Protection Type	Finger, Arm, Hand
Range
PL (EN ISO 13849-1)	PL c
Length	35 mm
Maximum Protective Width
Sensing Distance Min	300 mm
Component Type	Sender, Receiver
Dimensions	35 x 35 x 750 mm
Width	35 mm
Scanning Range
Safety Type	2
SIL (IEC 61508)	SIL 1
