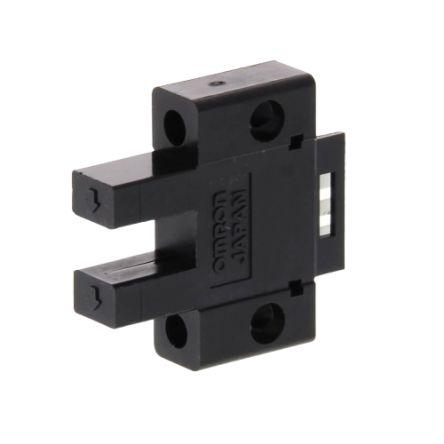

Omron Photo micro sensor, slot type, standard EE-SX670R

13 in stock

£35.18(exc. VAT)

£42.22(inc. VAT)

Mfr part no: EE-SX670R

RS Stock No.: 2157234

Brand: Omron

Technical Reference

Attribute	Value
Sensor Technology	Photoelectric
IP Rating	IP50 - dust protected; not water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Standards Met	cULus Listed, CE Marked
Thread Size
Terminal Type	4-Pin Connector
Mounting Type	Screw Mount
Housing Material	Plastic
Body Style	Fork
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Omron
Detection Type	Through Beam
Switching Mode	Light/Dark switching
Light Source	Infrared
Hazardous Area Certification
Maximum Detection Range	5 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	5 V
Electrical Connection	Connector
Dimensions	25.4 x 6.4 x 28.4 mm
Length	25.4 mm
Width	6.4 mm
Height	28.4 mm
Series	EE-SX67
