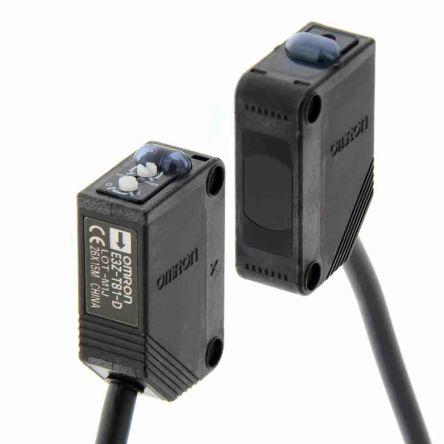

Omron Photoelectric sensor, through-beam, 15 m E3Z-T81 5M

0 in stock

£127.40(exc. VAT)

£152.88(inc. VAT)

Mfr part no: E3Z-T81 5M

RS Stock No.: 2155462

Brand: Omron

Technical Reference

Attribute	Value
Thread Size
Terminal Type	5 m Cable
Mounting Type	Screw Mount
Housing Material	Plastic
Body Style	Rectangular
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Standards Met	cULus Listed, CE Marked
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Omron
Detection Type	Through Beam
Switching Mode	Light/Dark switching
Light Source	Infrared
Hazardous Area Certification
Maximum Detection Range	15000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Electrical Connection	Cable
Dimensions	33.1 x 10.8 x 20 mm
Length	20 mm
Width	10.8 mm
Height	33.1 mm
Series	E3Z
