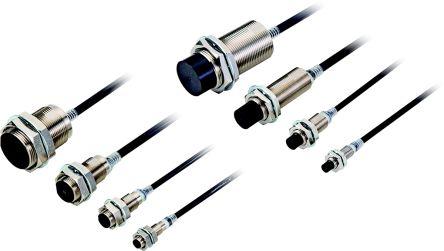

Omron Proximity sensor, inductive, brass-nicke E2E-X10MD112-M1TGJ-T 0.3M

2 in stock

£65.50(exc. VAT)

£78.60(inc. VAT)

Mfr part no: E2E-X10MD112-M1TGJ-T 0.3M

RS Stock No.: 1756912

Brand: Omron

Technical Reference

Attribute	Value
Standards Met	UL Certified, CE Marked, CSA Certified
Thread Size	M12
Terminal Type	0.3 m Cable
Mounting Type	Non-Flush
Housing Material	Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	No
Output Type	2-Wire DC
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	10 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	100 mA
Electrical Connection	Cable
Dimensions	M12 x 47.1 mm
Length	47.1 mm
Series	E2E-NEXT
