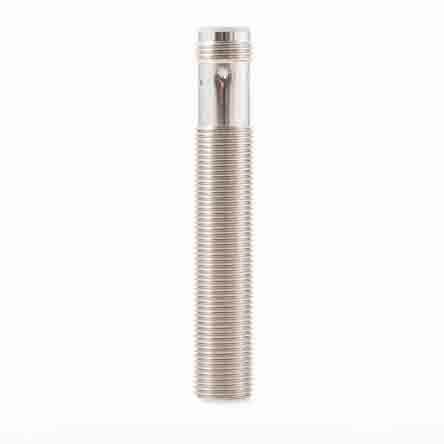

Omron Proximity sensor, LITE, inductive, nicke E2B-M12LS02-M1-B1

0 in stock

£32.42(exc. VAT)

£38.90(inc. VAT)

Mfr part no: E2B-M12LS02-M1-B1

RS Stock No.: 2157118

Brand: Omron

Technical Reference

Attribute	Value
Standards Met	CE Marked
Thread Size	M12
Terminal Type	M12 Connector
Mounting Type	Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	PNP
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	2 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	M12 x 74 mm
Length	74 mm
Series	E2B
