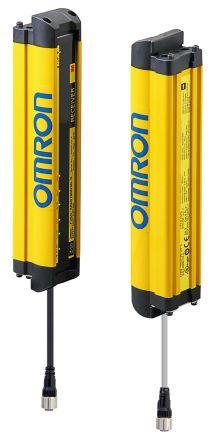

Omron Safety Sensor F3SG-R Easy Type 2 PNP

RS Stock No: 1250673

Mfr Part No: F3SG-2RE0160P14

Brand: Omron

Safety Sensor F3SG-R Easy Type 2 PNP
Unavailable
£413.20(exc. VAT)
£495.84(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Terminal Type
Supply Voltage24 V
Output TypePNP
ManufacturerOmron
Number of Beams15
FeaturesDownsized, No Torque Control Required, Ensuring Safe Restart, Easy Adjustment after Mounting, Protected with Protection Cover, Slim Housing, Robust & Compact Design, Smart Muting Actuator, Quick Troubleshooting, Reducing Stops Due to Mutual Interference, Used in Global & Harsh Environment, Reliable Even in Harsh Environment
SeriesF3SG-RE
Product Range
Response Time Max125 ms
BrandOmron
Protective Area Height160 mm
Sensing Distance Max1000 mm
Beam Resolution14 mm
Height160
Protection TypeFinger, Arm, Hand
Range
PL (EN ISO 13849-1)PL c
Length35
Maximum Protective Width
Sensing Distance Min300 mm
Component TypeSender, Receiver
Dimensions35 x 35 x 160 mm
Width35
Scanning Range
Safety Type2
SIL (IEC 61508)SIL 1
