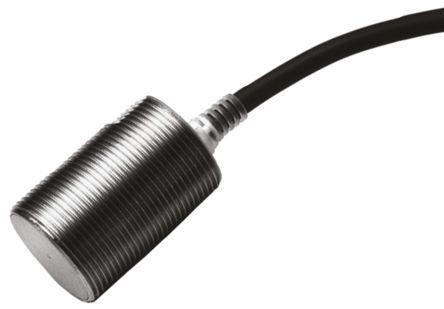

Omron SENSOR, Inductive M18 E2E-X10MY2-US

0 in stock

£146.60(exc. VAT)

£175.92(inc. VAT)

Mfr part no: E2E-X10MY2-US

RS Stock No.: 8086361

Brand: Omron

Technical Specifications

Attribute	Value
Thread Size	M18
Terminal Type	M18 Connector
Mounting Type	Non-Flush
Housing Material	Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	85 °C
Shielding	Unshielded
Reverse Polarity Protection
Output Type
Standards Met	EN60947-5-2, IEC 60529
Material Detected	Metal
Brand	Omron
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	10 mm
Minimum Detection Range	0 mm
Maximum AC Supply Voltage	240 V
Minimum AC Supply Voltage	20 V
Maximum AC output current	300 mA
Electrical Connection	Connector
Dimensions	M18 x 43 mm
Length	43 mm
Series	E2E-X
