Technical Specifications

Sensor TechnologyPhotoelectric
IP RatingIP50 - dust protected; not water protected
Minimum Operating Temperature-25 °C
Maximum Operating Temperature55 °C
Reverse Polarity Protection
Output TypeNPN
Standards MetcULus Listed, CE Marked
Thread Size
Terminal Type4-Pin Connector
Mounting TypeScrew Mount
Housing MaterialPlastic

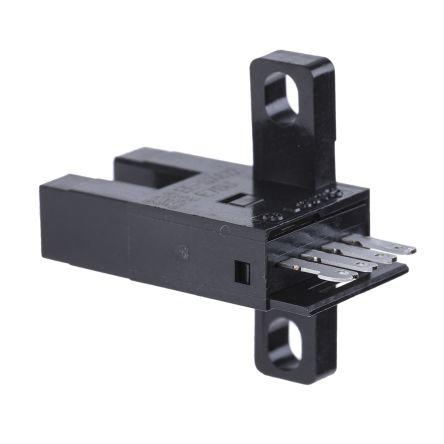

Body StyleFork
Material DetectedMetal, Plastic - Opaque, Glass - Opaque
Detection TypeThrough Beam
Switching ModeLight/Dark switching
Light SourceInfrared
Hazardous Area Certification
Maximum Detection Range5 mm
Minimum Detection Range0 mm
Maximum DC Supply Voltage24 V
Minimum DC Supply Voltage5 V
Electrical ConnectionConnector
Dimensions26 x 13.4 x 13.7 mm
Length26 mm
Width13.4 mm
Height13.7 mm
