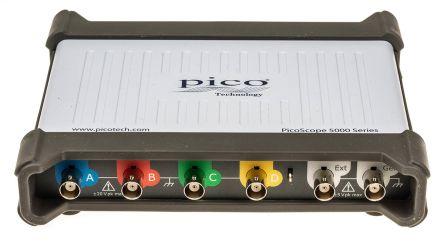

Pico Technology Pico Technology 5443D PC Based Oscilloscope, 100MHz, 4 Analogue Channels

RS Stock No: 1749593

Mfr Part No: PicoScope 5443D

Brand: Pico Technology

Pico Technology 5443D PC Based Oscilloscope, 100MHz, 4 Analogue Channels
In stock - 5
£2,065.55(exc. VAT)
£2,478.66(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Built-in Signal GeneratorYes
Power SourceUSB
Oscilloscope TypeMixed Signal
Input Impedance1 MΩ
Sample Rate50 GS/s
Display Type
Calibrated service type
Record Length512 Mpts
Maximum Vertical Sensitivity4000 (mV/div)
Dimensions190 x 170 x 40 mm
Number of Automatic measurements33
BrandPico Technology
Trigger TypeWindow, Pulse Width, Runt Pulse, Window Dropout, Window Pulse Width, Logic, Edge, Dropout, Interval
Number of Channels4
Memory Depth512 Mpts
Battery Type
Wi-FiNo
Waveform Refresh Rate1, 000 wfm/s, 30
Safety CategoryEN 61010-1:2010
Maximum Time Base5000 (s/div)
Digital/AnalogueAnalogue
Rise Time0.43 ns
Minimum Time Base1 (ns/div)
ManufacturerPico Technology
Number of Analogue Channels4
Weight4.8 kg
Bandwidth100 MHz
Minimum Vertical Sensitivity2 (mV/div)
Manufacturer Part NumberPicoScope 5443D
Waveform Math and Analysisaverage, ln, log, cos, sign, derivative, arccos, frequency, norm, tanh, min, integral, sin, bandpass, exp, tan, Square root, max, sinh, lowpass, coupler, highpass, peak, bandstop, cosh, abs, delay, arctan, duty, arcsin
Touch ScreenNo
USB PoweredYes
Input Capacitance14 pF
Vertical Resolution11 bit
Oscilloscope FormPC Based
Number of Digital Channels16
Built-in Wave GeneratorYes
Communication InterfaceLIN, CAN, USB, RS422, UART, RS232, RS485, SPI
