| Built-in Signal Generator | Yes |
| Power Source | |
| Oscilloscope Type | Mixed Signal |
| Input Impedance | 1 MΩ |
| Sample Rate | 2.5 GS/s |
| Display Type | |
| Calibrated service type | |
| Record Length | 2 Mpts |
| Maximum Vertical Sensitivity | 4 (mV/div) |
| Dimensions | 245 x 192 x 61.5 mm |
| Number of Automatic measurements | 35 |
| Brand | Pico Technology |
| Trigger Type | Pulse Width, Zone, Rise/Fall Time, Setup And Hold, Edge, Runt |
| Number of Channels | 4 |
| Memory Depth | 2 Mpts |
| Battery Type | |
| Wi-Fi | No |
| Waveform Refresh Rate | |
| Safety Category | EN 61010-1:2010-A1:2019 |
| Maximum Time Base | |
| Digital/Analogue | Analogue |
| Rise Time | 1 ns |
| Minimum Time Base | 1 (ns/div) |
| Manufacturer | Pico Technology |
| Number of Analogue Channels | 4 |
| Weight | 4.2 kg |
| Bandwidth | 500 MHz |
| Minimum Vertical Sensitivity | 2 (mV/div) |

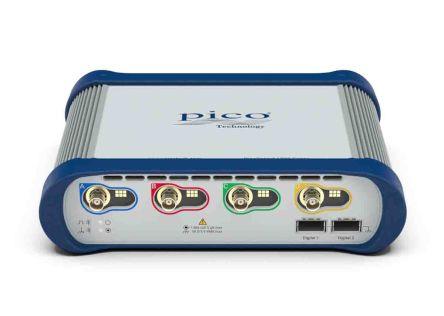

| Manufacturer Part Number | PicoScope 6424E |
| Waveform Math and Analysis | Standard Enhanced FFT |
| Touch Screen | No |
| USB Powered | Yes |
| Input Capacitance | 12 pF |
| Vertical Resolution | 8 bit |
| Oscilloscope Form | PC Based |
| Number of Digital Channels | 16 |
| Built-in Wave Generator | Yes |
| Communication Interface | USB |
