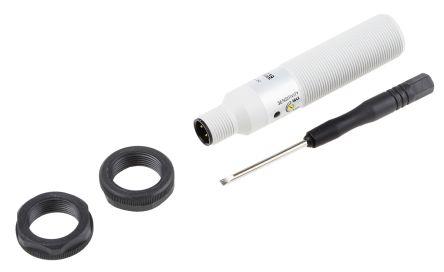

Capacitive sensor, M18 Sr 5mm

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M18 x 1
Housing Material	PBT
Body Style	Cylindrical
Supply Voltage
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Capacitive
Shielding	Shielded
IP Rating	IP67
Reverse Polarity Protection	Yes
Manufacturer	RS PRO
Series
Depth
Standards/Approvals	CE, IEC Certified
Brand	RS PRO
Communication Interface
Sensing Distance	5 mm
Switching Frequency	50
Switching Current	200
Short Circuit Overload Protection	Yes
Length	83.5
Dimensions
Electrical Connection	4-Pin M12 Connector
