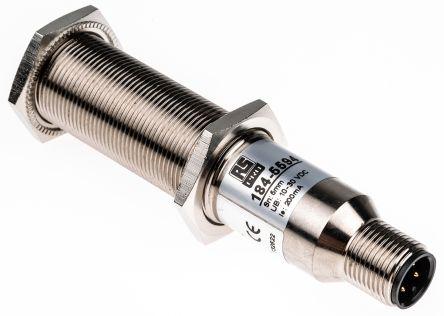

RS PRO Capacitive Sensor, NPN, NO+NC, Flush, 5m

RS Stock No: 1845594

Mfr Part No: 1845594

Brand: RS PRO

Capacitive Sensor, NPN, NO+NC, Flush, 5m
Unavailable
£63.79(exc. VAT)
£76.55(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Supply Voltage10 V to 30 V
Output TypeNPN
Maximum Operating Temperature70
Sensor TechnologyCapacitive
Shielding
Minimum Operating Temperature-25
IP RatingIP67
Reverse Polarity ProtectionYes
Mounting TypeFlush
Thread SizeM18 x 1
Terminal Type3-Pin M8 Connector
Housing MaterialCopper Alloy
Body StyleCylindrical
ManufacturerRS PRO
Shape
Series
Hazardous Area Certification
Standards/Approvals
BrandRS PRO
Supply Voltage DC Max30 V
Application
Communication Interface
Sensing Distance5 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency50 Hz
Switching Current15 mA
Short Circuit Overload ProtectionYes
Length83.5
Switching Frequency Max
Dimensions
Electrical Connection3-Pin M8 Connector
