Please note: Some technical details are unavailable for this product

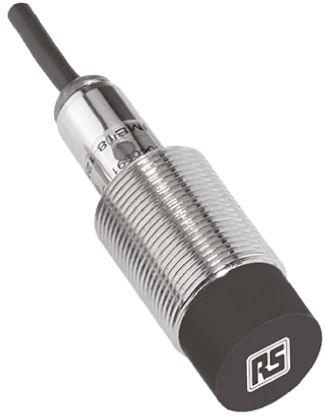

RS PRO Inductive Sensor, M18, NPN, Sn 8mm, 2M

RS Stock No: 7018257

Mfr Part No: 7018257

Brand: RS PRO

Inductive Sensor, M18, NPN, Sn 8mm, 2M
Unavailable
£42.52(exc. VAT)
£51.02(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Supply Voltage10 V to 30 V
Output TypeNPN
Maximum Operating Temperature75
Sensor TechnologyInductive
Shielding
Minimum Operating Temperature-25
IP RatingIP67
Reverse Polarity ProtectionYes
Mounting TypeNon-flush
Thread SizeM18 x 1
Terminal TypeCable
Housing MaterialNickel Plated Brass
Body StyleCylindrical
ManufacturerRS PRO
Shape
Series
Hazardous Area Certification
Standards/ApprovalsUL Certified, cULus Listed, EN 60947-5-2, RoHS Compliant
BrandRS PRO
Supply Voltage DC Max30 V
Application
Communication Interface
Sensing Distance8 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length48
Switching Frequency Max1 kHz
Dimensions
Electrical ConnectionCable
