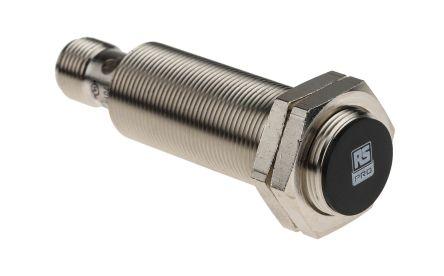

RS PRO Inductive Sensor, M18, PNP, Sn 5mm, M12 7018244

142 in stock

£38.19(exc. VAT)

£45.83(inc. VAT)

Mfr part no: 7018244

RS Stock No.: 7018244

Brand: RS PRO

Technical Specifications

Attribute	Value
Supply Voltage	10 V to 30 V
Output Type	PNP
Maximum Operating Temperature	75 °C
Sensor Technology	Inductive
Shielding
Minimum Operating Temperature	-25 °C
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M18 x 1
Terminal Type	4-Pin M12 Connector
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	RS PRO
Shape
Series
Hazardous Area Certification
Standards/Approvals	UL Certified, cULus Listed, EN 60947-5-2, RoHS Compliant
Brand	RS PRO
Supply Voltage DC Max	30 V
Application
Communication Interface
Sensing Distance	5 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Length	69 mm
Switching Frequency Max	1 kHz
Dimensions
Electrical Connection	4-Pin M12 Connector
