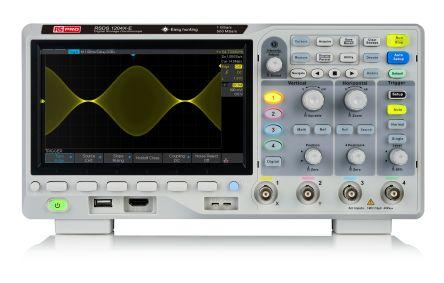

RS PRO RS PRO RS-SDS1204X-E Benchtop Digital Oscilloscope, 200MHz, 16 Digital Channels, 4 Analogue Channels

RS Stock No: 2368984

Mfr Part No: SDS1204X-E

Brand: RS PRO

RS PRO RS-SDS1204X-E Benchtop Digital Oscilloscope, 200MHz, 16 Digital Channels, 4 Analogue Channels
Out of stock
£853.84(exc. VAT)
£1,024.61(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Built-in Signal Generator
Power SourceMains
Oscilloscope TypeDigital Storage
Input Impedance1 MΩ
Sample Rate5 GS/s
Display TypeTFT LCD
Calibrated service typeNo
Record Length0.016 Mpts
Maximum Vertical Sensitivity4000 (mV/div)
Dimensions
Number of Automatic measurements38
BrandRS PRO
Trigger TypeWindow, Pattern, Serial, Pulse Width, Video, Qualified, Edge, Runt, Slope, Dropout, Interval
Number of Channels4
Memory Depth0.016 Mpts
Battery TypeLithium-Ion Polymer
Wi-Fi
Waveform Refresh Rate120000 wfm/s, 500000 wfm/s
Safety Category
Maximum Time Base
Digital/AnalogueDigital
Rise Time0.4 ns
ManufacturerRS PRO
Number of Analogue Channels4
Screen Size7 in
Weight
Bandwidth200 MHz
Manufacturer Part NumberSDS1204X-E
Waveform Math and AnalysisFFT, Arithmetic
Touch ScreenYes
USB Powered
Input Capacitance15 pF
Vertical Resolution8 bit
Oscilloscope FormBench
Number of Digital Channels16
Built-in Wave Generator
Communication InterfaceUSB
