| Minimum Operating Temperature | -5 °C |
| Maximum Operating Temperature | +55 °C |
| Terminal Type | Screw |
| Function | Resistive Load |
| Operational Current | 200 A |
| Mounting Style | Screw |
| Standards/Approvals | CSA, CCC, EAC, IEC, UL, RoHS |
| Width | 200.5 mm |
| Length | 162 mm |
| Brand | Schneider |
| Auxiliary Contact Configuration | |
| Coil Voltage [VAC] | 220 |
| Manufacturer | Schneider |
| Number of Auxiliary Contacts | 4 |
| Contact Voltage Rating [VAC] | 690 |
| Contactor Application | Motor Control, Resistive Load |
| Coil Voltage [VDC] | |
| Interlocking type | |
| Power Rating [KVA] | 0.77 |
| Power Rating [KVAR] | |
| Utilisation category | AC-1 |
| Control Circuit Voltage Uc | 220 V |
| Pole and Throw Configuration | 4P |
| Contact Current Rating [AC] | 200 |
| Depth | 171 mm |
| Power Rating [kW] | 0.0072 |
| Contact Voltage Rating [VDC] | 460 |
| Number of Poles | 4 |

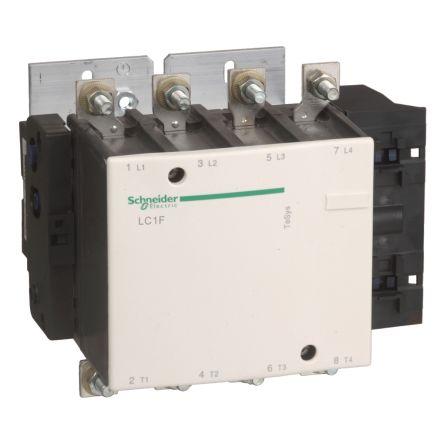

| Series | LC1F |
| Contact Current Rating [DC] | |
| Normal State Configuration | 4 NO |
