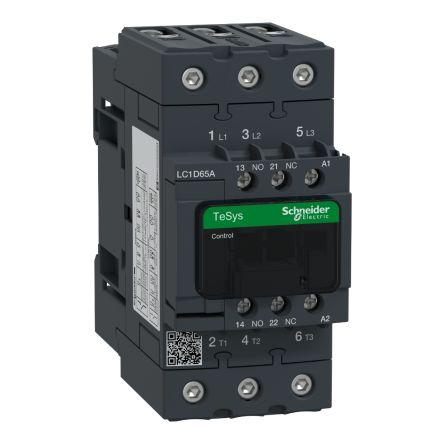

Schneider 3P ELK CONT 65A 42V50/60HZ

RS Stock No: 8447570

Mfr Part No: LC1D65AD7

Brand: Schneider

3P ELK CONT 65A 42V50/60HZ
Unavailable
Price unavailable
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Minimum Operating Temperature-5 °C
Maximum Operating Temperature+60 °C
Terminal TypeScrew
FunctionMotor Control, Resistive Load
Operational Current65 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsCSA, CCC, EAC, IEC, UL, RoHS
Width55 mm
Length122 mm
BrandSchneider
Auxiliary Contact Configuration1 NC, 1 NO
Coil Voltage [VAC]42
ManufacturerSchneider
Number of Auxiliary Contacts2
Contact Voltage Rating [VAC]690
Contactor ApplicationMotor Control, Resistive Load
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]0.16
Power Rating [KVAR]
Utilisation categoryAC-3, AC-1
Control Circuit Voltage Uc42 V
Pole and Throw Configuration3P
Contact Current Rating [AC]80
Depth120 mm
Power Rating [kW]30
Contact Voltage Rating [VDC]300
Number of Poles3
SeriesLC1D
Contact Current Rating [DC]
Normal State Configuration3 NO
