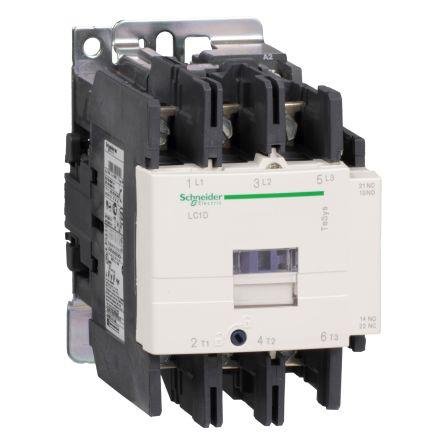

Schneider CONT 95A 230V 50/60HZ LUGTM

RS Stock No: 8448867

Mfr Part No: LC1D956P7

Brand: Schneider

CONT 95A 230V 50/60HZ LUGTM
Unavailable
£437.77(exc. VAT)
£525.32(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Minimum Operating Temperature-5 °C
Maximum Operating Temperature+60 °C
Terminal TypeLug-Ring
FunctionMotor Control, Resistive Load
Operational Current95 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsCSA, CCC, EAC, IEC, UL, RoHS
Width85 mm
Length127 mm
BrandSchneider
Auxiliary Contact Configuration1 NC, 1 NO
Coil Voltage [VAC]230
ManufacturerSchneider
Number of Auxiliary Contacts2
Contact Voltage Rating [VAC]690
Contactor ApplicationMotor Control, Resistive Load
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]0.245
Power Rating [KVAR]
Utilisation categoryAC-3, AC-1
Control Circuit Voltage Uc230 V
Pole and Throw Configuration3P
Contact Current Rating [AC]125
Depth130 mm
Power Rating [kW]45
Contact Voltage Rating [VDC]300
Number of Poles3
SeriesLC1D
Contact Current Rating [DC]
Normal State Configuration3 NO
