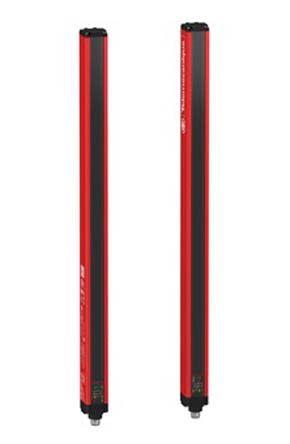

Schneider Electric Light Curtain, T2, Res. 30mm, H 1060mm

RS Stock No: 1278300

Mfr Part No: XUSL2E30H106N

Brand: Schneider Electric

Light Curtain, T2, Res. 30mm, H 1060mm
Out of stock
£1,608.53(exc. VAT)
£1,930.24(inc. VAT)
Buy from RS Online

More Tech Docs and Models

Download this product’s symbols, footprints, 3D STEPS and more from our partners. Other rules about downloading the files here.

By downloading these files, you agree to our Terms and Conditions and Privacy Policy

Technical Specifications

AttributeValue
Terminal Type
Supply Voltage24 V
Output TypePNP, 2 OSSD
ManufacturerSchneider Electric
Number of Beams53
FeaturesAutomatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
SeriesXUSL2E
Product RangePreventa
Response Time Max14.5 ms
BrandSchneider Electric
Protective Area Height1060 mm
Sensing Distance Max12000 mm
Beam Resolution30 mm
Height1113 mm
Protection TypeHand Protection
PL (EN ISO 13849-1)PL c
Length31 mm
Maximum Protective Width
Sensing Distance Min0 mm
Component TypeSender, Receiver
Dimensions31 x 29.4 x 1113 mm
Width29.4 mm
Safety Type2
SIL (IEC 61508)SIL 1
