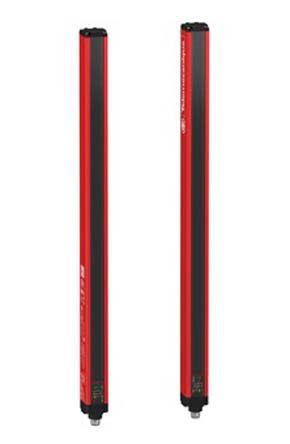

Light Curtain, T2, Res. 30mm, H 1360mm

Technical Reference

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP, 2 OSSD
Manufacturer	Schneider Electric
Number of Beams	68
Features	Automatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Series	XUSL2E
Product Range	Preventa
Response Time Max	17.5 ms
Brand	Schneider Electric
Protective Area Height	1360 mm
Sensing Distance Max	12000 mm
Beam Resolution	30 mm
Height	1413 mm
Protection Type	Hand Protection
PL (EN ISO 13849-1)	PL c
Length	31 mm
Maximum Protective Width
Sensing Distance Min	0 mm
Component Type	Sender, Receiver
Dimensions	31 x 29.4 x 1413 mm
Width	29.4 mm
Safety Type	2
SIL (IEC 61508)	SIL 1
